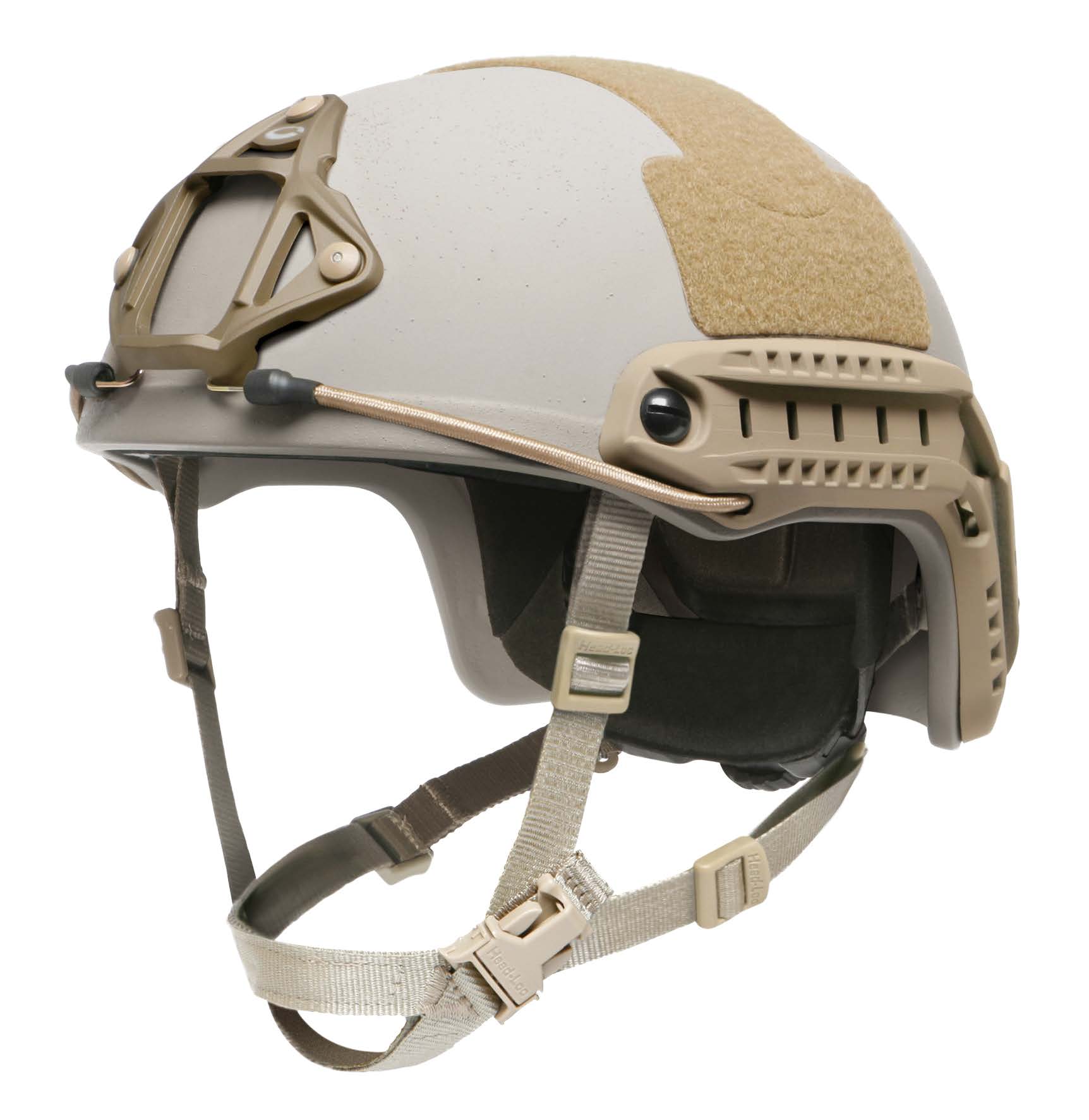

FAST LE HIGH CUT HELMET SYSTEM OPS CORE

OPSCORE_FASTLE_01
Réf. FAST LE

Description

  • High cut, medium weight, ballistic shell made of Monolithic Aramid.
  • Allows for greater integration of communication equipment in a high cut design than ACH helmets with a low cut design.
  • Features an Ops-Core 3-Point Skeleton™ Shroud for universal capability with most NVG mounts, Accessory Rail Connectors (ARCs) with Hook Bungees, and external Velcro® loop.
  • Scalable design allows for compatibility with Ops-Core visors, mandibles, handgun face shields, and ballistic applique.
  • Available with four suspension/retention options.

Specifications :

  • Performance Specification: Ops-Core LE Helmet Performance Specification PS-1118
  • Modified and Abbreviated US Army CO/PD 05-04:2007 Purchase Description
  • NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ / 44mag @ 1,400 ft/s) Threats
  • 17gr FSP Fragmentation Protection: V-50 rating of 670 m/s (2,200 ft/s) in accordance with PS-1118 and MIL-STD-662F
  • Blunt Impact Protection: <150 G's at 10 ft/s per ACH CO/PD 05-04:2007
  • Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F, and Hot +160° F, Temperature Shock, Flame Resistance, Altitude, Vibration,
    Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007
  • Shell Construction: Two Stage Non Slit
    Areal Density: 2.07 lbs/ft² (101.60 g/dm²)
    Shell Thickness: 0.290" (7.37mm)
    Shell Geometry (Curvature): FAST
    Cut Style (Side Protection): High Cut
    Available Colors: black, urban tan, foliage green, multicam or desert marpat
    Available Sizes: Medium (M), Large (L), X-Large (XL), XX-Large (XXL)
Available sizes M L XL XXL
Head Size (circumference) 53-56cm 56-59cm 59-62cm 62-64.5cm
Square coverage 988cm² 1063cm² 1157cm² 1233cm²
FAST LE Shell Weight (Shell with Paint & Edge Band) 969g 1085g 1184g 1258g

System weight

Suspension/Retention Option Taille L
FAST LE System Weight (FAST LE Shell with Suspension/Retention Options) Lux Liner w/ Worm-Dial Fitband 1519g
Lux liner w/ H-Nape Chinstrap 1469g
EPP pads w/ Worm-Dial Fitband 1451g
EPP pads w/ Occ-Dial Fitband 1474g

Note: All measurements are +/- 3% tolerance
