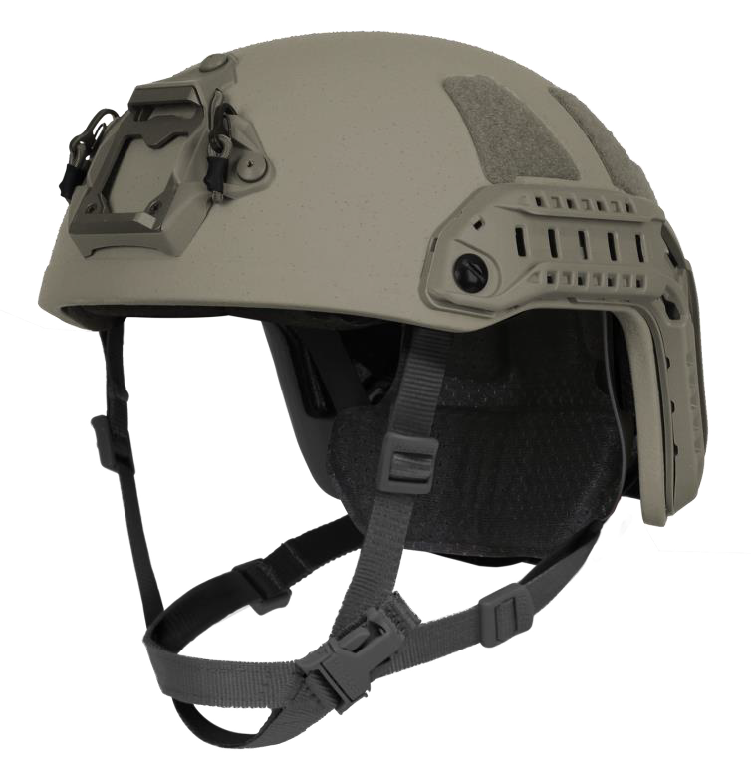

FAST XP HIGH CUT HELMET SYSTEM

OPS_FASTXP_02 OPS_FASTXP_03 OPS_FASTXP_04 OPS_FASTXP_05 OPS_FASTXP_06 OPS_FASTXP_07
OPS_FASTXP_01
Réf. FAST XP

Description

  • High cut shell made of a hybrid composite of Carbon, Uni-directional Polyethylene, and Woven Aramid.R
  • Raised ear cut allows for integration with communications headsets.
  • Features an Ops-Core Skeleton™ Shroud for universal compatibility with most NVG mounts, 4 position Accessory Rail Connectors (ARCs) and external Velcro loop.
  • Available with four suspension/retention options.
  • Available in black, urban tan, foliage green, multicam or desert marpat.

Specifications :

  • Reference Testing Standards*: Portions of US Army ACH Helmet Specification CO/PD-05-04: 2007 | PS-1063: Ops-Core Performance Specification XP Helmet
  • Ballistic Testing:
    *Not all suspension/retention options are tested to full stated standards.
Projectile FPS Minimum V50
2 - Grain (RCC) 4200 fps
4 - Grain (RCC) 3475 fps
16 - Grain (RCC) 2475 fps
64 - Grain (RCC) 1750 fps
17 - Grain (RCC) 2379 fps
9mm FMJ RN (V0 at 0° obliquity) 1450 fps with (max) Backface Deformation of 25.4mm (right, left, crown, front and rear)
  • Impact Testing: 150 g's maximum @ 10 fps
  • Compression Testing: Top-Bottom = .020" Max @ 400 lbs., Side-Side = .125" Max @ 300 lbs.
  • Environmental Testing: Temperature -Storage and Operating at Ambient, Cold -60° F, and Hot +160° F,
  • Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer
  • Shell Construction: Two-Stage Non Slit
  • Areal Density: 1.58 lbs/ft² (77.14 g/dm²)
  • Shell Thickness: 0.290" (7.37mm)
  • Shell Geometry (Curvature): FAST
  • Cut Style (Side Protection): High Cut

Shell sizing and coverage :

Available sizes M L XL XXL
Head size (circumference) 53-56cm 56-59cm 59-62cm 62-64.5cm
Square coverage 988cm² 1063cm² 1157cm² 1233cm²

Shell weight :

Available sizes M L XL XXL
FAST XP Shell Weight 764g 853g 913g 989g

System weight :

FAST XP System Weight L
FAST XP System  Weight (FAST XP Shell with suspension/retention options) Lux Liner w/ Worm-Dial Fitband 1288g
Lux Liner w/ H-Nape chinstrap 1238g
EPP pads w/ Worm-Dial Fitband 1220g
EPP Pads w/ Occ-Dial Fitband 1243g

Note: All measurements are +/- 3% tolerance
