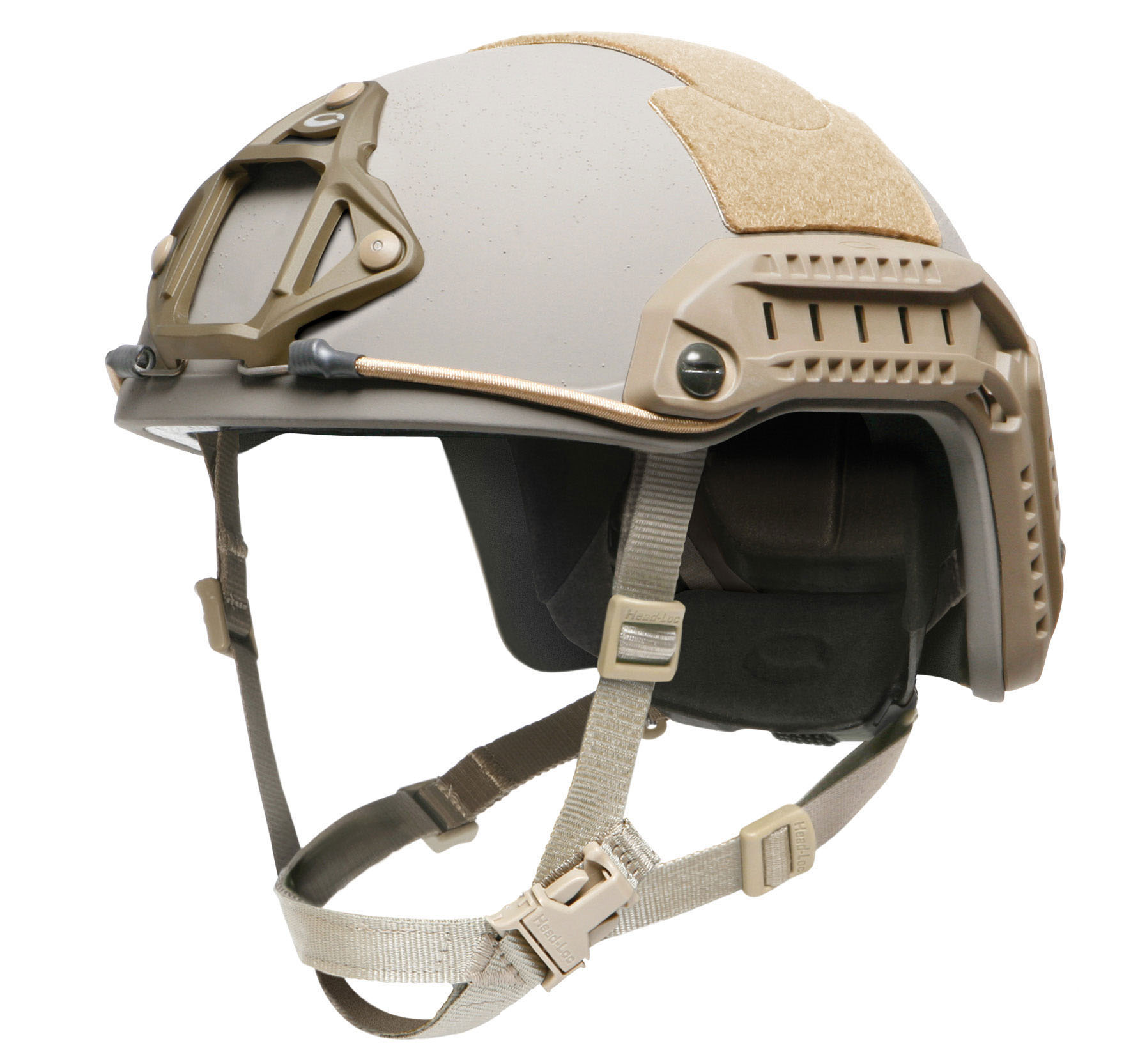

FAST SF SUPER HIGH CUT HELMET SYSTEM

Coloris CASQUE FAST SF SUPER HIGH CUT OPS CORE_Plan de travail 1 OPSCORE_FASTSF_02 OPSCORE_FASTSF_03 OPSCORE_FASTSF_04
OPSCORE_FASTSF_01
Merci de renseigner les informations concernant les variantes liées au produit demandé (tailles, couleurs, arme…etc) ou toute information complémentaire à votre demande dans le champ suivant :

Description

  • Super high cut, ballistic shell made of a hybrid composite of the most advanced Carbon, Unidirectional Polyethylene and Women Aramid.
  • High performance evolution of the Ops-Core FAST MT Super High Cut Helmet, with an 8% weight reduction, while maintaining compatibility with FAST head borne accessories.
  • Super high cut shell geometry extends critical coverage over the rear occipital lobe without load carrier interference, and optimizes weight distribution for increased stability, integration, balance, and improved comfort.
  • Ear cut geometry is 16 mm higher than the FAST XP High Cut shell shape, allowing for clearance of larger headset style communication devices.
  • Super High Cut Skeleton Rails offer lower profile with a 30% weight reduction from FAST MT Super High Cut Rails.
  • Features a lightweight Modular Bungee Shroud (MBS) which reduces snag hazards and interference. Carabiner clips improve NVG retention and stability.
  • Molded liner features proprietary recessed groove, accommodating over-thehead communications headsets with no interference or user discomfort, and ability to doff and don helmet without removing the headset.
  • Base of helmet features expanded polypropylene (EPP) liner, offering enhanced impact protection, and molded-in vent holes are integrated with the shell to provide increased airflow and reduce heat stress.
  • Available with three suspension/retention options.



Specifications :

  • Performance Specification*: Modified and Abbreviated Family of Tactical
    Headborne Systems, dated June 30th 2017



  • Ops-Core Performance Specification FAST SF PS-1228



  • Ballistic Testing:
    *Not all suspension/retention options are tested to full stated standards.
PROJECTILE V50 MINIMUM FSP
2 - Grain (RCC) 4200 fps
4 - Grain (RCC) 3475 fps
16 - Grain (RCC) 2475 fps
17 - Grain (RCC) 2297 fps
64 - Grain (RCC) 1750 fps
9mm FMJ RN (V0 at 0° Obliquity)  1.195 fps +50/-0 ft/s, Crown -23.4mm, Side- 27.1mm, Front- 29, Bcak 19.1mm
  • Blunt Impact Protection: 150 g's maximum at 10 ft/s. Maximum allowable dent 0.023
  • Compression Testing: Top-Bottom = .020" (0.51 mm) Max @ 400 lbs.(181.44 kg), Side-Side = .125" (3.18 mm) Max @ 300 lbs. (136.08 kg) lbs.
  • Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot +160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Seawater, Field Agent Resistance, Weatherometer
  • Shell Construction: Two-Stage Non Slit
  • Areal Density:



  • Medium (M): 1.407 lbs/ft² (6869.5 g/m²)
  • Large (L): 1.413 lbs/ft² (6898.8 g/m²)
  • X-Large (XL): 1.396 lbs/ft² (6815.8 g/m²)
  • XX-Large (XXL): 1.368 lbs/ft² (6679.2 g/m²)



  • Shell Thickness: 0.220" (5.58mm)
    Shell Geometry (Curvature): FAST
    Cut Style (Side Protection): Super High Cut
    Available Colors: noir, urban tan, foliage green, tan 499, multicam, desert marpat ou urban grey

Shell sizing and coverage :

Available sizes M L XL XXL
Head size (circunference) 53-56cm 56-59cm 59-62cm 62-64cm
Square coverage 884cm² 955cm² 1052cm² 1103cm²

Shell weight :

Availaible sizes M L XL XXL
FAST SF Shell Weight 617g 667g 721g 748g

System weight :

Suspension/Retention option** L
FAST SF System Weight (FAST SF Shell with suspension/retention options) Vented lux liner w/ Worm-Dial fitband 1019g
Vented lux liner w/ occ-dial universal fitband 978g
Vented lux liner w/ H-nape chinstrap 1039g

**Estimated calculations of weights) Note: All measurements are +/- 3% tolerance
