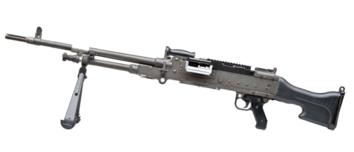

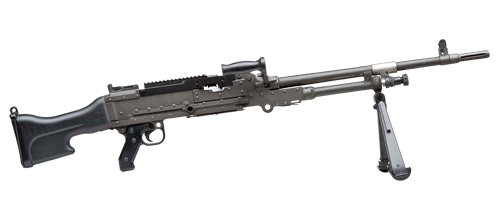

FN Herstal is the original designer and manufacturer of the FN MAG® general purpose machine gun.

With 200,000 units manufactured and adopted by over 90 countries around the globe (all climate types), the FN MAG® machine gun is the unbeatable worldwide reference in its category in terms of accuracy and reliability.

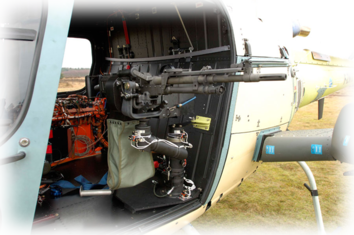

The FN MAG® primarily fires from mountings (on vehicles, aircraft, ships and boats, or on tripods) but is also used by troops on the ground.

The FN MAG® is also known as the MAG®58, GPMG, M240 or L7A2.

  • Oustanding Reliability
    • Throughout the years, the FN MAG® machine gun has proven its reliability in all combat conditions and all climate types thanks to:
  • An adjustable gas regulator
    • Can be increased to compensate for adverse conditions
    • Allows low rate of fire for maximum accuracy
  • A primary extraction
    • Reduces wear of extractor
  • A two-step feed
    • Increases belt pull capability
    • Long life of major parts
  • High Accuracy

    A strong and rigid receiver as well as a barrel tighly locked in the receiver makes the FN MAG® highly accurate.
  • Long Range Capability

    The FN MAG® machine gun fires 7.62x51mm NATO rounds which are perfectly suited to general purpose machine gun applications and offer an effective range up to 1,800m.
  • Sustained Fire Capability

    Belt feeding guarantees high volumes of fire.
    The FN MAG® features a quick change barrel which makes replacement of a hot barrel possible in less than 6 seconds, also during missions.
    In addition, the FN MAG® fires from an open breech, which suppresses any risk of cook-off.

  • Different variants for different applications

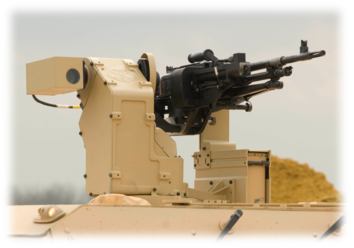

    The infantry model can also be mounted on pintles or on FN Herstal's deFNder® remote weapon stations without any modification.

    In addition, the FN MAG® is available in coax-mounted and pintle-mounted varinats to meet a large number of applications (air - land - sea).
Calibre 7.62x51mm NATO
Operating principle Gas operated, open breech
Overall length 1260mm (49.6")
Weapon width 118.7mm (4.67")
Weapon width with bipod extended 408mm (16.1")
Weapon width with bipod folded 160mm (6.3")
Weapon height 263mm (10.35")
Weapon height with bipod extended 318mm (12.5")
Weapon height with bipod folded 225mm (8.86")
Weapon weight 11,8 kg (26.01 lb)
Barrel type Long
Barrel weight 3.05 kg (6.75 lb)
Barrel length 630mm (24.80")
Buttstock type Fixed
Cyclic rate of fire 650 to 1,000 RPM
Feed Belt
Firing mode Full auto
Handguard type N/A
Role General Purpose Machine Gun



Product submitted to french regulation on firearms.
